Two Stage Air Compressors Manufacturer


Our Products - Industrial Two stage Air Compressors

Compressor Spares

Port Plates Frams & Outer
Cross Head Pins And Bushing

Two Stage Compressors

Two Stage Compressor, Two Stage Compressors

two stage compressors, two stage air compressors, air compressor, two stage air compressors manufacturer, two stage air compressors exporter, two stage compressor Two stage Compressors :: Two stage Air Compressors :: we are manufacturers & exporters, suppliers in india, china, taiwan, turkey, mongolia, singapore, united states, united arab emirates, united kingdom.

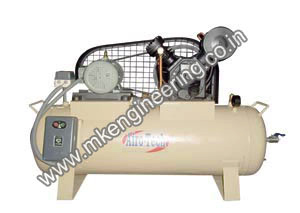

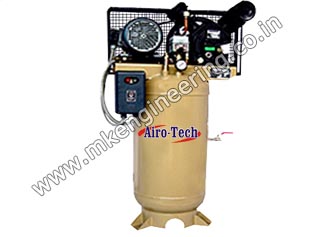

Two stage Air Compressors are meant for pressure requirement upto 175 PSIG (12.3 kg/cm2g). We manufacture two stage heavy duty industrial compressors that find usage in major industrial sectors. These industrial compressors are made from corrosion resistant material and last longer. Constructed as per the latest technical requirements, these compressors are reliable and durable.

The technical specifications of this compressor  are :

TWO STAGE COMPRESSORS (For Low Pressure :2 - 6( kg/cm2 )
MODEL MOTOR No.Of Cyl. COMP.
RPM
RECEIVER
LTR
MAX. PRESSURE PISTON DISPL
CFM
HP KW PSIG KG/CM2
1234 2/3 1.5/2.2 2 675/960 150 175 12.3 7.59/10.80
12340 3 2.20 2 1000 150 175 12.3 11.25
1242 5/7.5 3.70/5.50 2 865/1000 225 175 12.3 17.32/20
12475 7.5 5.50 2 1100 225 175 12.3 22
1253 7.5/10 5.5/7.5 2 660 300 175/250 12.3/17.5 26.23
12545 7.5/10 5.50/7.5 2 750/950 300 175 12.3 29.81/31.80
171T2 10/12.5/15 7.5/9.3/11 2 725/900/1000 300 175 12.3 40/49.5/55
115T 15/20 11/15 3 700/900 500 175 12.3 63.50/81.80
125T2 25/30 18.5/22 3 900/1000 500 175 12.3 99/110
