Multi Stages Compressor

Multi Stages Compressor,Multi Stage Air Compressors,Multi Stages Compressor Manufacturers,Suppliers & Exporter Ahmedabad,Gujarat,India

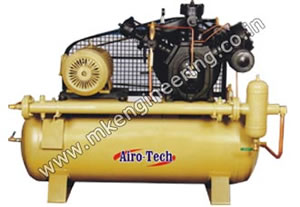

	Multi stage Air Compressor are meant for high pressure compressed air requirement up to 70 kg/cm²g (1000 PSIG).
	These high pressure requirement is ideal for Air Blast Circuit Breaking, PET Industries etc.These compressors can withstand high pressures with high functionality and performance.

The technical specifications of this compressor are :

MULTI STAGE COMPRESSORS (For high Pressure :17-70.30( kg/cm² )
MODEL	MOTOR		No.Of Cyl.	COMP. RPM	RECEIVER LTR	MAX. PRESSURE		PISTON DISPL CFM
MODEL	HP	KW	No.Of Cyl.	COMP. RPM	RECEIVER LTR	PSIG	KG/CM²	PISTON DISPL CFM
1231	3	2.20	2	675	150	500	35.15	7.60
17T2	7.5/10/12.5	5.5/7.5/9.3	2	530/710/800	300	500	35.15	24/32.25/36.36
115T2	15	11	3	650/760	500	1000/500	70.3/35.15	35.75/41.80
115T2	20	15	3	875/900	500	1000/800	70.3/56.25	48/49.50

|

|
